MBB- Al Bag, ESD Shielding Bag, Antistatic Bag, Zipper Bag, and Etc

* Production Capability

- Bag Width : 150mm~1,650mm
- Bag Length : 3,000mm
* Production Capacity

- Based on 280x525 size : 650kpcs/month - Standard lead time : 10~15days

AL MBB Technical data

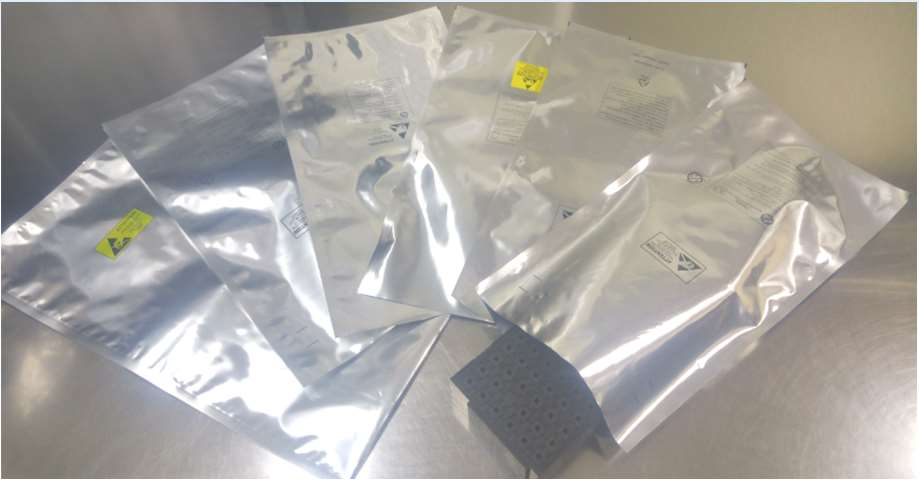

Al MBB

- To protect the vacuum packed material from moisture and electric shock.
- Various size as per customer option is possible from 150mm to 1,650mm.
- Color option : Metalic silver

Al MBB material properties

Physical properties
properties Typical Values Test Method
Thickness
  • 4~7 mils
  • MIL-STD-3010
Puncture resustabce
  • > 16lbs
  • MIL-STD-3010
Seal Strength
  • >4 N/mm
  • ASTM F88/F88M-09
Tensile Strength
  • >33 MPa
  • ASTM D882-10
Elongation
  • >70%
  • ASTM D882-10
Tear Strength
  • 12 kN/m
  • ASTM D624-00(Die C)
Seam Strength
  • No Separation
  • MIL-STD-3010-2024
WVTR
  • <0.0003 G/100incn² /24hrs
  • ASTM F-1249
Electrical properties
properties Typical Values Test Method
Surfaca Outer
  • <10¹¹ ohms
  • ASTM D257
Resisitivity Inner
  • ≥10⁵ , 10¹¹ ohms
Static Decay
  • <0.2 sec.
  • MIL-STD-3010-4046
Electrostatic Voltage
  • <30 volts
  • EIA STD 541
Shielding Energy
  • <10 nJ
  • STM-11.31@12%R.H.
