Plastic Injection part IC Tray, Reel, and etc

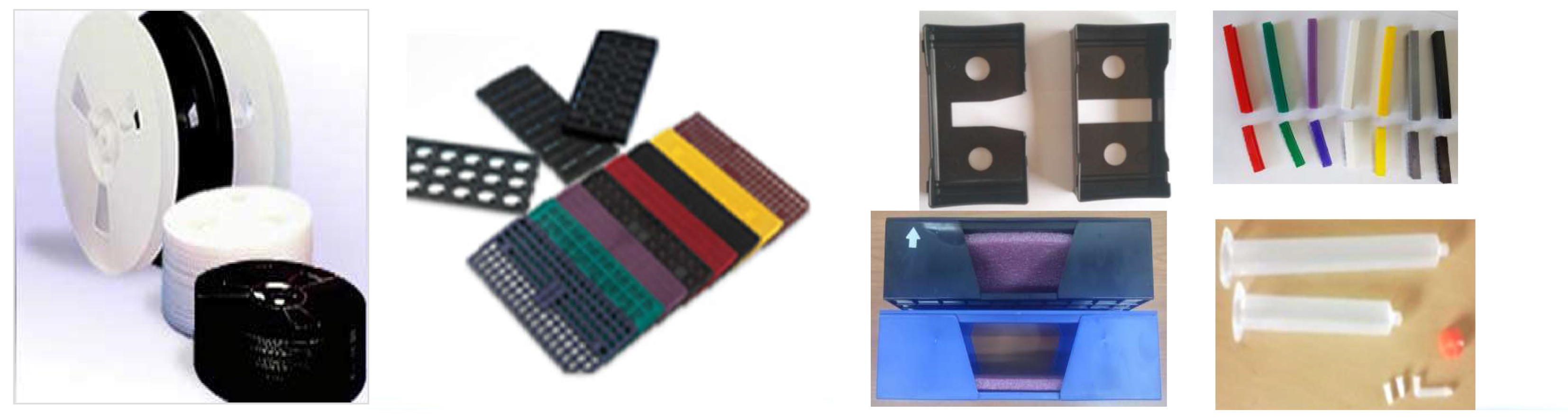

Plastic Injection Part

Plastic Injection Part- Reel, Tray, and Plastic parts

Production Capability

- Plastic Reel 15inch/13inch/7inch Diameter-Width 8,12,16,24,32, 44, 56mm and etc.
Production Capacity

- Plastic Reel 13inch/15inch : 250Kpcs/Month
- Plastic Reel 7inch : 350Kpcs/Month
- Substrate Bundle Case : 100Kpcs/Month

Plastic parts – Mold Availability

- PCB Substrate Bundle Case : 77.5X240
- IC Tray clip and End-cap for packing
- Syringe, plunger, cap, Cross section sample mounting cup, and etc.

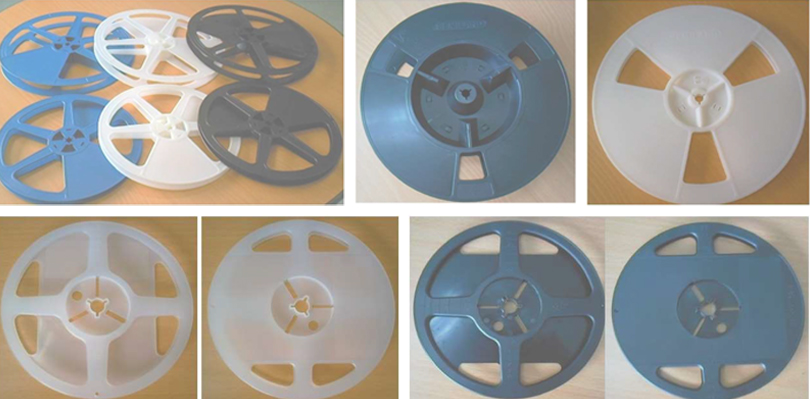

Plastic Injection Part(Reel)

Plastic – Reel introduction

  • 330mm
    3 piece type (13inch)

    • 80mm Hub- 12, 16, 24, 32, 44, 56, 72, 88mm
    • 100mm Hub - 12, 16, 24, 32, 44Mmm

  • 380mm
    3 piece type (15inch)

    • 80mm Hub- 12, 16, 24, 32, 44, 56, 72, 88mm
    • 180mm Hub - 44, 56, 72mm

  • 330mm
    2 piece lock type (13inch Lock Reel)

    • 100mm Hub - 12, 16, 24, 32, 44mm
    • 180mm Hub - 12, 16, 24, 32, 44, 56mm

  • 180mm
    1 piece type (7inch)

    • 60mm Hub – 8,12, 16mm

  • Color
    Option

    • Black / White / Blue

  • ESD
    Option

    • Insulative (>10E12ohm/sq)
    • Antistatic (10E8~10E11ohm/sq)
    • Dissipative (10E4~10E9ohm/sq)
